3-axis bridge saw
MALF Strata 3

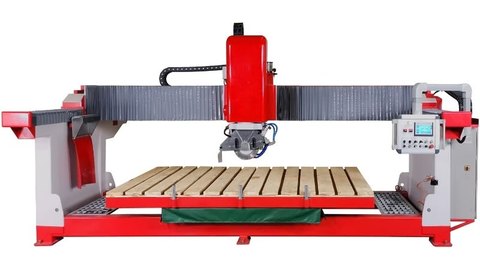

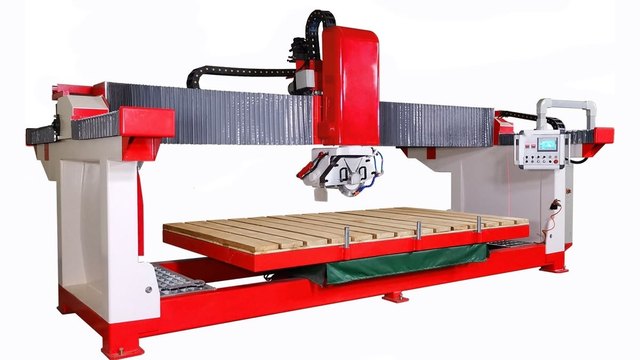

A 3-axis PLC bridge saw for granite, marble and quartz countertops, with a saw head that rotates and tilts to 45° and a worktable that rotates and tilts for loading.
- Installation included
- 1-year parts warranty
Warranty covers parts only. Travel and lodging are billed separately when an installation needs an overnight stay.
Ask on WhatsAppSee it in action
The saw head rotating and tilting, the Siemens electrical cabinet, the linear guides and examples of cut pieces.
Key specifications
| Axes | 3-axis (X, Y, Z), PLC-controlled |
|---|---|
| Worktable | 137.8″ × 82.7″ (3500 × 2100 mm) |
| Max. cutting thickness | 3.9″ (100 mm) with a 17.7″ blade |
| Z travel | 9.8″ (250 mm) |
| Saw motor | 20.1 hp (15 kW) |
| Blade size | 13.8″–17.7″ (350–450 mm), 16″ ready |

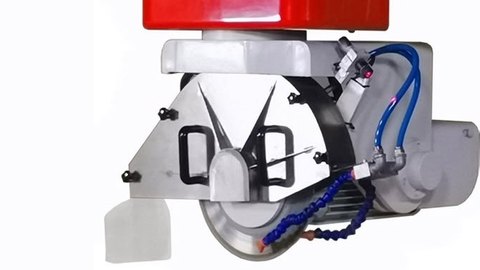

| Saw head | Rotates 0–360°, locks every 90°; tilts and locks at 45° |
| Worktable motion | Rotates 0–360° and tilts 0–85°, locks at any angle |
| Control | Siemens PLC with touchscreen |
| Electrical | Siemens and Schneider Electric components |
| Motion | HIWIN linear guides, made in Taiwan; encoder |
| Total power | 28.6 hp (21.3 kW) |
| Water use | 8.8 gpm (2 m³/h) |
Features
- Automatic lengthwise, crosswise and 45° miter cuts

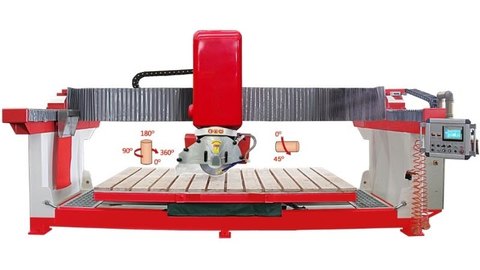

- Saw head rotates 360° and locks every 90°, and tilts to a locked 45° for miters

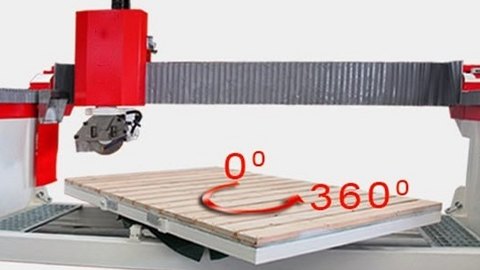

- Worktable rotates 360° and locks at any angle for angled cuts

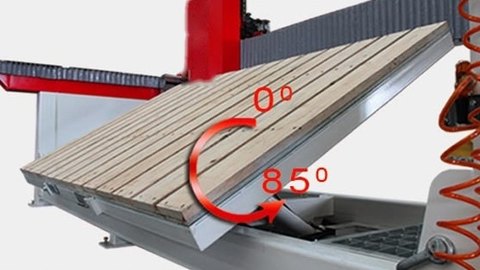

- Worktable tilts up to 85° for easier slab loading and unloading
- Siemens PLC and touchscreen: stable and easy to operate
- Taiwan-made HIWIN linear guides for cutting accuracy and long machine life
- Siemens and Schneider Electric parts, easy to source in the US
- Encoder-equipped for accurate positioning
- Ships in one 20 ft container, mostly assembled, for faster unloading and setup
- Options: wireless remote control and water spray gun
Specifications subject to change without notice.
Installation and warranty
Installation included
Our team sets up, levels and calibrates the Strata 3 in your shop and gets it cutting.
Anywhere in the US
Installation is included wherever you are. When the job takes more than a day away from South Florida, travel and lodging are billed separately, and we quote them up front.
1-year parts warranty
Parts are covered for one year. Labor and travel are not included in the warranty.
Get a quote for the Strata 3
Tell us about your shop and where it is, and we'll send you a quote.
