5-axis CNC bridge saw
MALF Strata 5

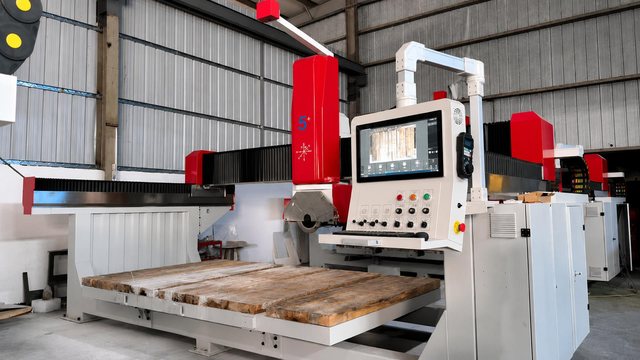

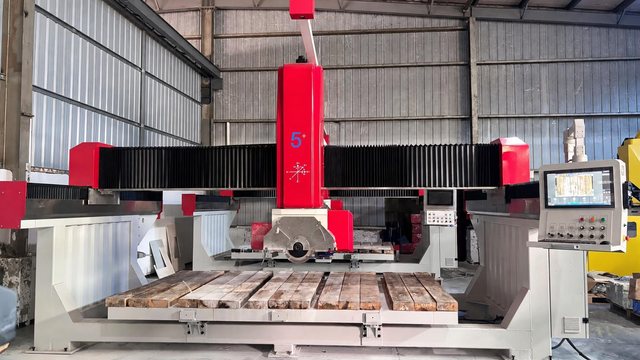

An open-frame 5-axis CNC bridge saw for granite, marble and quartz countertops, with camera layout, automatic suction cups and a separate milling spindle.
- Installation included
- 2-year parts warranty
Warranty covers parts only. Travel and lodging are billed separately when an installation needs an overnight stay.
Ask on WhatsAppSee it cut
Camera layout, sink cutout milling, 45° miter cuts and the suction cups moving parts on the table.
Key specifications
| Axes | 5-axis: X, Y, Z, A tilt 0–90°, C rotation ±365° |
|---|---|
| Working area | 141.7″ × 86.6″ (3600 × 2200 mm) |
| Worktable tilt | 0–85° |
| Saw motor | 29.5 hp (22 kW), 0–4500 rpm |
| Blade size | 11.8″–23.6″ (300–600 mm), 16″ ready |
| Milling spindle | Separate motor, chiller-cooled |
| Rapid traverse | 82 ft/min (25 m/min) |

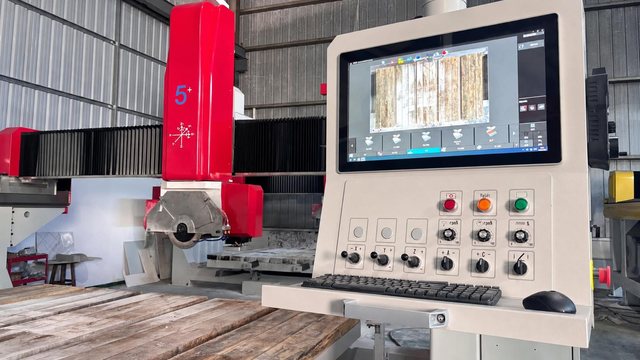

| CNC control | CUTCAM EtherCAT controller, Windows 10 touchscreen PC |
| CAM software | CUTCAM 3.0, in English |
| Electrical | Siemens and Schneider Electric components |
| Motion | Absolute-value bus servo motors and drives; Taiwan-made linear guide rails, rack and pinion |
Features
- Separate milling spindle for sink cutouts and inside corners
- Camera vision for slab layout and vein matching
- Vacuum suction cups move cut parts to avoid saw marks and save material
- Intelligent nesting for better slab yield
- Automatic tool measurement for blade and milling bit
- Tilting worktable for easier slab loading
- Import DXF, Excel, STL and STP files, or use the built-in shape gallery; no G-code programming
- Handwheel and control pad with joysticks
- Siemens and Schneider Electric parts, easy to source in the US
- Remote networking
Specifications subject to change without notice.
Installation and warranty
Installation included
Our team sets up, levels and calibrates the Strata 5 in your shop and gets it cutting.
Anywhere in the US
Installation is included wherever you are. When the job takes more than a day away from South Florida, travel and lodging are billed separately, and we quote them up front.
2-year parts warranty
Parts are covered for two years. Labor and travel are not included in the warranty.
Get a quote for the Strata 5
Tell us about your shop and where it is, and we'll send you a quote.
